Product Description

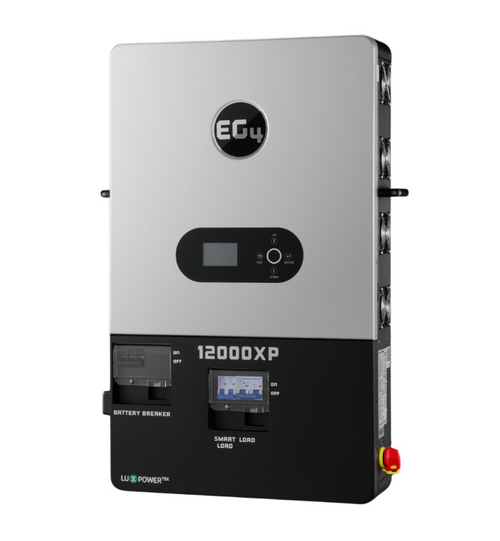

EG4 12000XP Off-Grid Inverter 48V Split Phase 12kW Output 24kW PV Input
Experience true off‑grid independence with the EG4 12000XP V2 Off‑Grid Inverter. Engineered for residential, commercial, and industrial applications, this high‑performance inverter delivers 12,000W of continuous AC output and an unmatched 24kW PV input capacity through its high‑voltage 480VDC architecture. Whether you're powering a remote homestead, a commercial site, or a mission‑critical off‑grid system, the 12000XP provides exceptional reliability, efficiency, and scalability.
With dual MPPT controllers, closed‑loop battery communication, and optional Wi‑Fi monitoring, the 12000XP offers advanced control and seamless integration with EG4 LiFePO4 batteries and supported BMS platforms. Its rugged design, rapid shutdown compliance, and expandable parallel capability make it one of the most capable off‑grid inverters available today.
Key Performance Features
- 12,000W continuous AC output with 18kW surge capacity (5 seconds)
- 24,000W PV input via high‑voltage 480VDC architecture
- Dual MPPT controllers (12kW per MPPT)
- Up to 16 units in parallel for massive 192kW systems
- Closed‑loop communication with EG4 batteries and supported BMS platforms
- Plug‑in Wi‑Fi module compatible with EG4 monitoring app
- NEC 690.12 rapid shutdown compliant
- High efficiency MPPT tracking up to 99%
- Robust protection: PV reverse polarity, over‑voltage, surge protection
Advanced Off‑Grid Capabilities
- Designed for full off‑grid operation with optional grid‑assist functionality
- High‑voltage PV input reduces cabling complexity and eliminates combiner boxes
- Supports multiple battery chemistries including LiFePO4 and lead‑acid
- Ideal for remote locations, cabins, worksites, and commercial off‑grid systems
- Intuitive plug‑and‑play installation with simplified wiring
Technical Specifications
- Rated Output Power: 12kW
- Surge Capacity: 18kW (5 seconds)
- PV Input: Up to 24kW (480VDC max)
- MPPT Inputs: 2 × 12kW
- Battery Voltage: 48V
- AC Output: 120/240VAC | 50/60 Hz
- Parallel Capability: Up to 16 units (192kW total)
- Recommended Battery Bank: Minimum 400Ah per inverter
- Operating Temperature: 32°F – 113°F (0°C – 45°C)
- Certifications: UL1741, FCC, CE
- Warranty: 5 years
Ideal Applications
- Off‑grid homes and cabins
- Remote worksites and mobile power systems
- Commercial and industrial off‑grid installations
- High‑demand energy systems requiring scalable power
The EG4 12000XP V2 delivers unmatched off‑grid capability, high‑voltage solar input, and scalable power architecture. Whether you're building a resilient homestead or deploying a commercial energy system, the 12000XP provides the flexibility, safety, and performance required for modern off‑grid living.
Choose the EG4 12000XP for maximum off‑grid power, advanced control, and long‑term reliability.
