Product Description

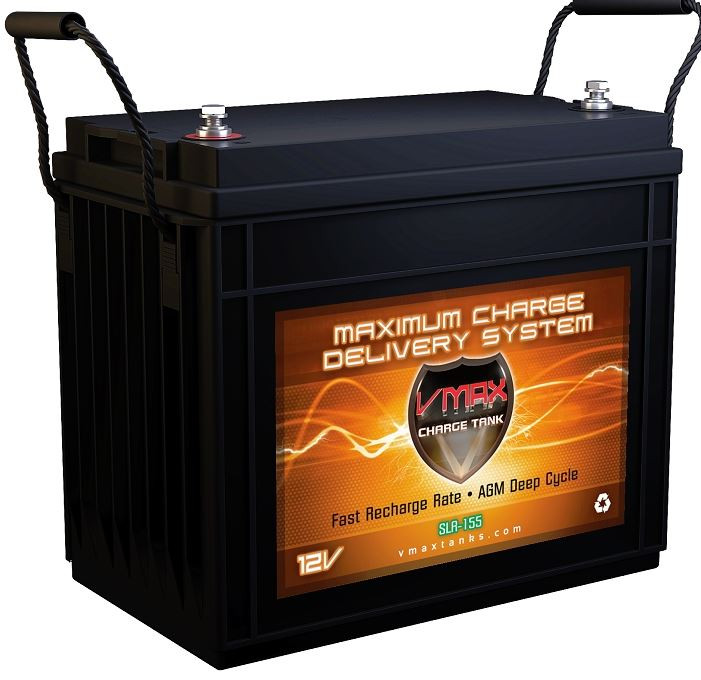

VMAX SLR155 – 12V 155Ah AGM Deep Cycle Solar Battery (Group GC12)
The VMAX SLR155 is a heavy‑duty 12V 155Ah AGM deep cycle battery engineered for solar, wind, RV, marine, and off‑grid power systems. With 2.1kWh of stored energy, a rugged GC12 form factor, and VMAX’s military‑grade lead‑tin alloy plates, the SLR155 delivers exceptional durability, long cycle life, and reliable deep‑cycle performance for demanding renewable energy applications.
Bulk pricing available — contact Hurricane Wind Power for volume quotes.
Key Benefits
- High Capacity: 155Ah at 12V with 350‑minute reserve capacity.
- Deep Cycle Design: Optimized for solar, wind, and off‑grid systems.
- Maintenance‑Free AGM: No watering, no fumes, no spills.
- Long Service Life: Up to 1,600 cycles at 25% DOD; 8–10 years in float service.
- Heavy‑Duty Construction: VMAX premium lead‑tin alloy plates.
- High Discharge Capability: 1000A max discharge (5 seconds).
- Free Shipping: Delivered within the lower 48 United States.
Applications
- Solar energy storage
- Wind power systems
- RV house battery banks
- Marine deep cycle applications
- Off‑grid cabins and backup power
- UPS and inverter systems
Charging Requirements
- Charging Current: 10A–35A (max 45A)
- Charging Voltage: 14.4V–14.9V
- Float Voltage: 13.5V–13.8V
- Solar Panel Range: 225W–500W (150W acceptable if DOD ≤ 50%)
- Wind Turbine Range: 225W–500W
- Charge Controller: 20A and up
Warning: Do not use chargers below the recommended amperage. Maintainers are for maintaining a full charge only.
Technical Specifications
| Model | SLR155 |
| Battery Type | AGM Deep Cycle |
| Nominal Voltage | 12V |
| Capacity (20Hr) | 155Ah |
| Energy | 2.1 kWh |
| Reserve Capacity | 350 minutes |
| CCA | 920A |
| MCA | 1150A |
| Cycle Life | 1,600 cycles @ 25% DOD; 900 @ 50% DOD; 550 @ 80% DOD |
| Design Life | 8–10 years (float service) |
| Max Discharge Current | 1000A (5 seconds) |
| Short Circuit Current | 2500A |
| Max Charging Current | 45A |
| Internal Resistance | 3.8 mΩ |
| Dimensions | 13.5” x 6.8” x 11.3” |
| Weight | 90 lbs |
| Terminal Type | M8 screw‑in |
| BCI Group Size | GC12 |
Temperature Ratings
- Discharge: -4°F to 140°F
- Charge: 14°F to 140°F
- Storage: -4°F to 140°F
Warranty & Shipping
- Warranty: 12 Months
- Shipping: Free to the lower 48 U.S. states
For system design assistance or bulk pricing, contact Hurricane Wind Power.
