Product Description

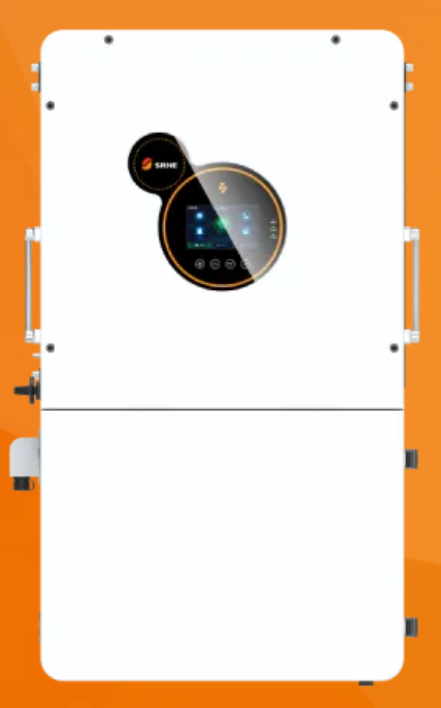

SRNE HESP48180UH3 18,000 Watt 48 Volt 3‑Phase Inverter/Charger
The SRNE HESP48180UH3 is a high‑capacity 18KW hybrid inverter/charger engineered for commercial, industrial, and large off‑grid applications. With true 3‑phase 120/208VAC output and a massive 28,800W MPPT solar input range (120–450VDC), this unit delivers exceptional performance, scalability, and reliability for demanding power systems.
Key Features:
- 18,000 Watt continuous output
- 48 Volt DC battery input
- 120/208VAC 3‑Phase output
- 28,800 Watt MPPT solar input (120–450VDC)
- High‑efficiency hybrid inverter/charger design
- Advanced MPPT tracking for maximum solar harvest
- Supports large commercial and off‑grid systems
- Smart monitoring and protection features
Specifications:
- Rated Power: 18,000W
- Battery Voltage: 48VDC
- AC Output: 120/208VAC 3‑Phase
- MPPT Input Range: 120–450VDC
- Max PV Input: 28,800W
- Weight: 62 lb (28 kg)
- Dimensions: 28.5” × 17.6” × 5.9”
- Topology: Hybrid inverter/charger
- Cooling: Intelligent forced‑air cooling
- Protection: Overload, over‑temp, short‑circuit, surge
Applications: Commercial solar systems, industrial backup power, large off‑grid installations, microgrids, and 3‑phase equipment loads.
Includes: HESP48180UH3 inverter/charger and user documentation.
Shipping Notice: Free shipping applies when UPS Ground is available. Due to weight and size, some destinations may require LTL freight. If LTL is required, we will contact you prior to shipment to arrange freight billing.
