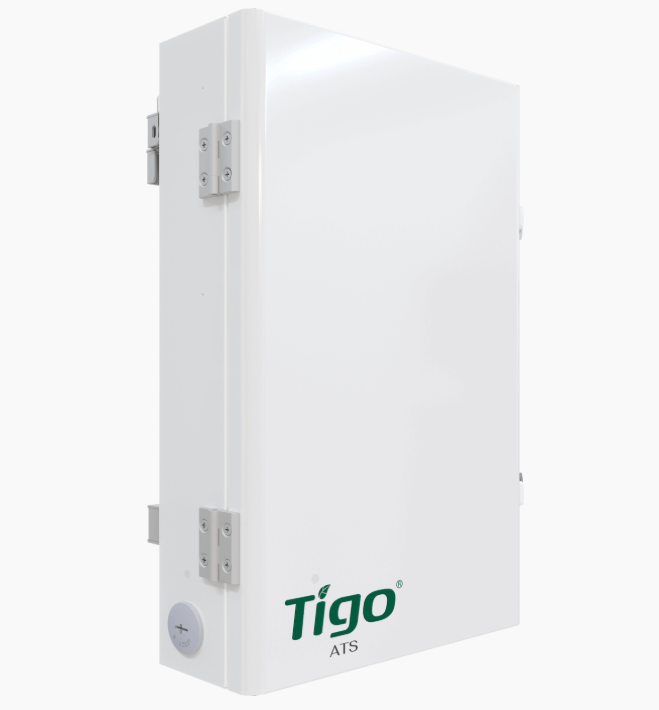

Tigo 801-200200-0301 Automatic Transfer Switch – 200A with Generator Support
The Tigo EI Automatic Transfer Switch (ATS) is a required component for any on-grid energy storage system using Tigo EI inverters. Designed for seamless backup power transitions, the ATS detects grid loss and automatically switches your system from grid + solar/battery to solar/battery-only operation.
Key Features
- 200 Amp Split-Phase Output – Supports 120/240Vac residential applications.
- Built-In Transformer – Ensures stable voltage regulation and reliable operation.
- IP65 / NEMA 4X Rated – Fully outdoor-ready, dust-tight, and water-resistant.
- Essential Load Backup – Maintains critical circuits during outages.
- Generator Support – Integrates with backup generators for extended runtime.
- Automatic Grid Detection – Safely restores grid-tied operation when utility power returns.
- Long Warranty – 132-month manufacturer warranty.
Specifications
- Model: 801-200200-0301
- Maximum Current: 200A
- Voltage: 120/240Vac Split Phase
- Enclosure Rating: IP65 / NEMA 4X
- Dimensions: 17.9 x 21.6 x 9.6 in
- Weight: 65 lbs
This ATS is essential for safe, code-compliant operation of Tigo EI energy storage systems and ensures uninterrupted power during grid outages.
