Product Description

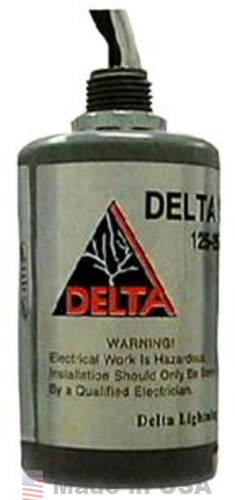

Delta CA302R
3‑Wire • Single Phase • 250VAC Surge Capacitor
Delta Surge Capacitors are designed to protect electrical and electronic equipment from fast, low‑energy voltage spikes that traditional surge arrestors cannot react to. The Delta CA Series absorbs and controls small, harmful surges—up to 6,000 volts—helping safeguard sensitive devices and extend system life.
The CA302R is built for 250V single‑phase, 3‑wire service and is ideal for residential and light commercial service entrance panels. Each unit includes an internal automatic discharge circuit for added safety and reliability.
Delta Surge Capacitor Features
- Controls fast, low‑energy surges that arrestors cannot suppress
- Non‑conductive base prevents shock hazards in the event of failure
- Fails without producing carbon dust that could damage nearby equipment
- Automatic internal discharge circuit for added safety
- Handles repeated small surges and voltage spikes
- Extra‑long leads for easier installation
- Includes locknut and bushing
- Suitable for residential and light commercial panels
CA302R Specifications
| Rated Voltage | Voltage to Neutral | Surge Current | Joules | Leads | Enclosure Rating | Dimensions |
| 250V Single Phase 3‑Wire |
125V | 60,000 amps | 20,000 per pole | 18" #12 AWG | NEMA 4 | 4.5" H × 2.25" D |
Need help choosing the right surge protection?
We support residential, commercial, and renewable energy systems—contact us anytime.
