Product Description

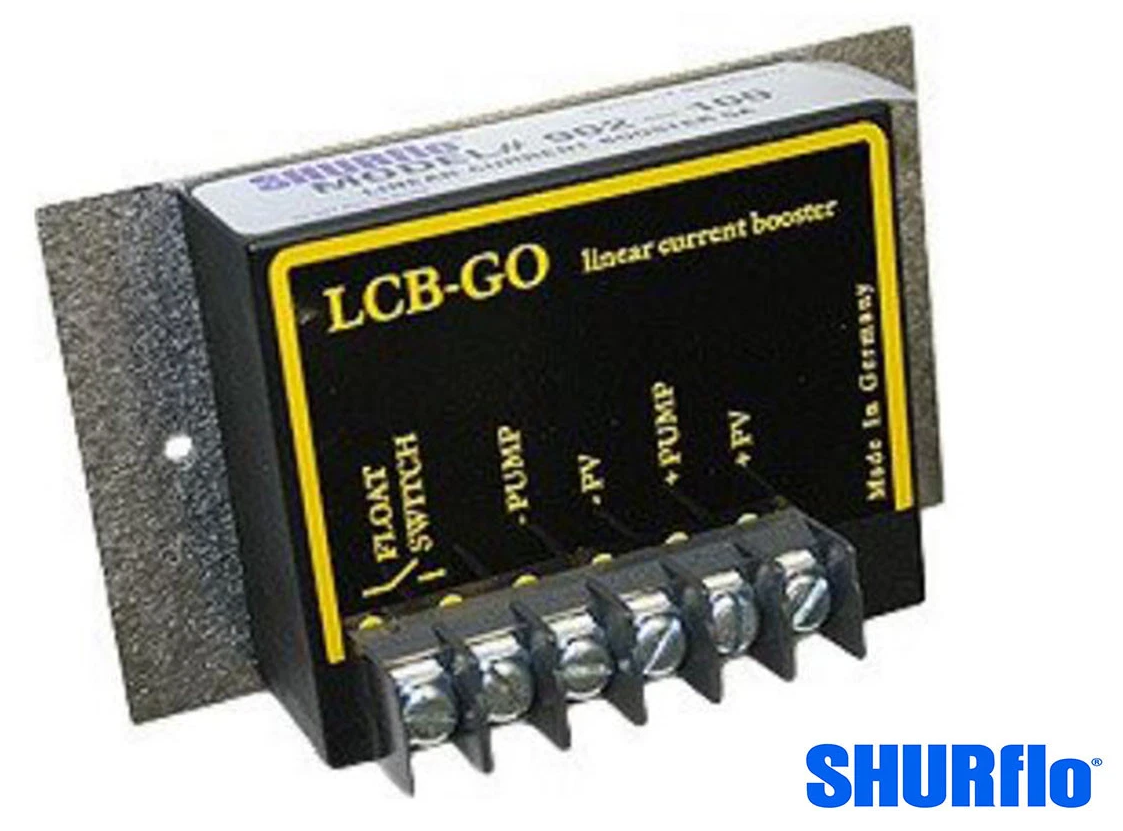

Shurflo Submersible Pump Controllers – Models 902-100
Boost the performance of your DC solar pump system by up to 30%. Shurflo pump controllers optimize your solar water pumping setup by converting the available voltage and current from your photovoltaic array into the ideal combination needed by the pump. With an optional float switch installed, the controller will automatically stop pumping when the reservoir is full.
Why Use a Pump Controller?
Controllers allow you to extract more usable power from your solar array and maximize pump output. They enable pumping earlier in the morning and later in the evening, increasing daily water flow by approximately 30%. These controllers are specifically engineered for solar-powered submersible pumps, providing more reliable performance even on less-than-optimal solar days.
Shurflo 902-100 Features
- Operates on 24 VDC
- Increases daily water output up to 30%
- Starts pumping earlier in the morning
- Continues pumping later in the evening
- Protects pump from low or high voltage conditions
- Terminals for float switch
Specifications (902-100)
- Maximum Power Output: 150 Watts
- Over Temperature Shutdown: 176°F (80°C)
- Ambient Temperature Range: 14°F (-10°C) to 113°F (45°C)
