Product Description

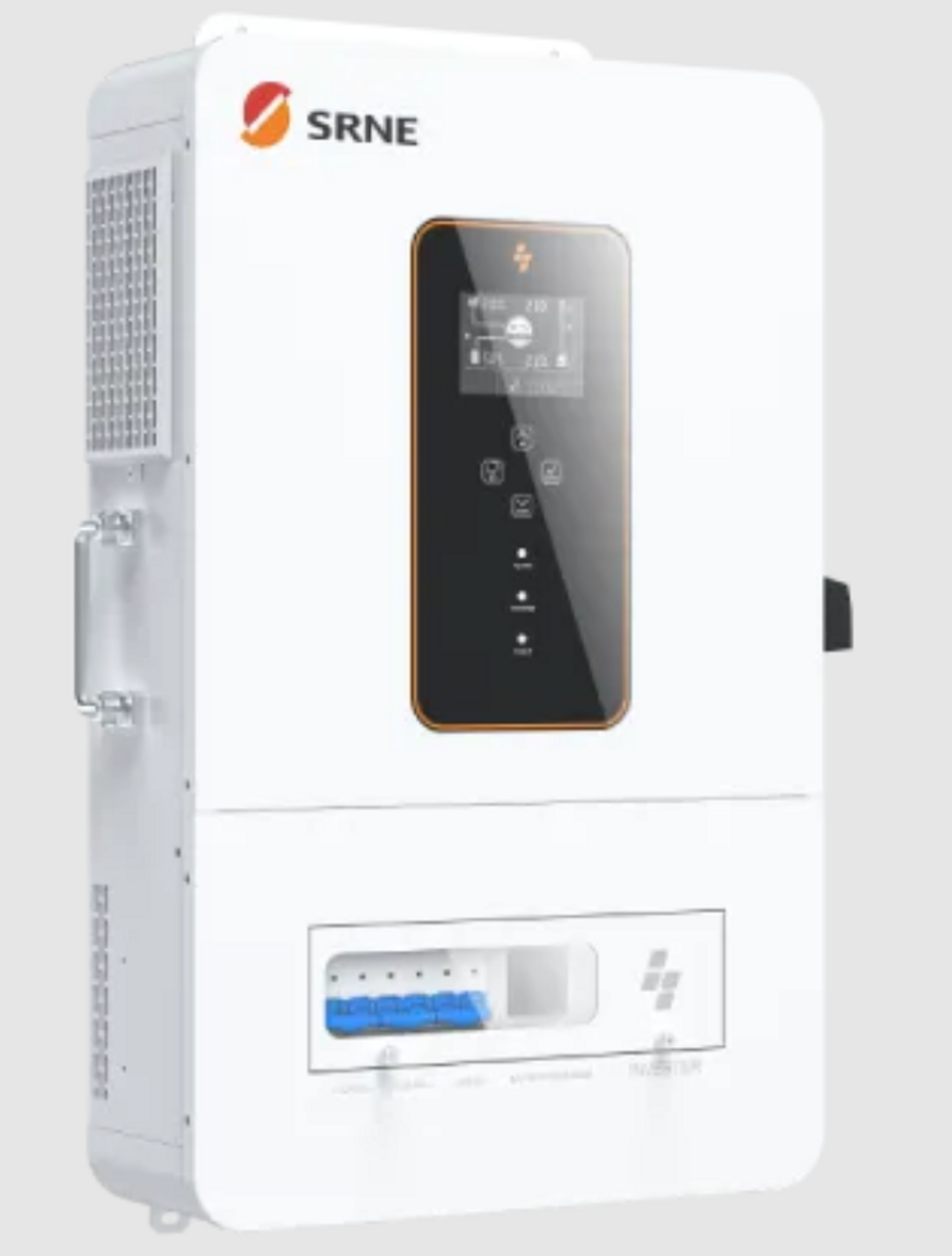

SRNE ABP48100U200-H 10KW 48V Split Phase Inverter/Charger
Power your off-grid or hybrid solar system with confidence. The SRNE ABP48100U200-H is a high-performance 10,000W inverter/charger designed for 48V battery banks. It delivers reliable 120/240VAC split-phase output and supports up to 11,000W of solar input through a wide MPPT voltage range of 125–425VDC. Ideal for residential, commercial, or backup power applications.
Key Specifications:
- Rated Output Power: 10,000W
- Output Voltage: 120/240VAC (split phase)
- Output Frequency: 60Hz
- Motor Capacity: Up to 5 HP
- Output Waveform: Pure sine wave
- Battery Voltage Range: 40–60VDC
- Battery Type: Lithium-ion, lead-acid, or user-defined
Solar & Charging Features:
- Max Solar Charging Current: 200A
- Max Grid Charging Current: 60A
- Max Generator Charging Current: 60A
- Max AC Charging Current: 120A
- MPPT Voltage Range: 125–425VDC (Recommended: 150–425VDC)
- Max PV Input Power: 11,000W
- Max PV Input Voltage: 450VDC
- Max PV Input Current: 40A
General Data:
- System Configuration: 1–6 units (3+ units support three-phase output)
- Dimensions: 900×600×200mm
- Weight: 65kg
- Installation Rating: IP20
- Operating Temperature: -10°C to 55°C (derates above 45°C)
- Communication Ports: RS485, CAN, USB, Dry Contact
- Communication Methods: Wi-Fi, GPRS
- Internal Protection: Integrated circuit breaker
Certifications:
- RoHS
- EN61000-6-1 / EN61000-6-3
- FCC Part 15 Class B
- IEC62109-1 / IEC62109-2
- UL1741
Overload Protection Logic:
- 100%–110% Load: Event reported, output continues
- 110%–125% Load: Event reported, output derated
- >125% Load: Event reported, output cut off
- After 5 overloads: Output disabled until manual restart
Whether you're upgrading an existing system or building a new one, the ABP48100U200-H offers scalable, intelligent power conversion with robust protection and flexible battery support.
