Product Description

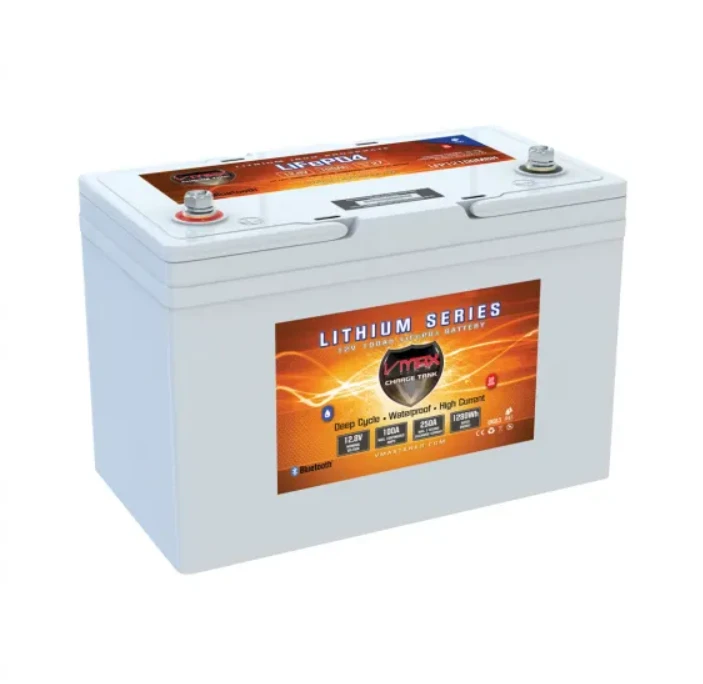

VMAX LFP12100MBH – 12V 100Ah LiFePO4 Battery with Bluetooth, Heater & IP67 Waterproofing
The VMAX LFP12100MBH is a premium 12V 100Ah LiFePO4 deep cycle battery engineered for marine, RV, solar, and off‑grid applications requiring maximum reliability, safety, and efficiency. Delivering 1280Wh of clean energy at over 98% efficiency and weighing only 25 lbs, this Group 27 battery provides exceptional power in a compact, lightweight form.
Bulk pricing available — contact Hurricane Wind Power for volume quotes.
Key Benefits
- Lightweight & Powerful: Only 25 lbs with 100Ah capacity and 1280Wh stored energy.
- Cold‑Weather Charging: Built‑in heater enables safe charging below 32°F (0°C).
- IP67 Waterproof: Fully sealed for harsh marine and outdoor environments.
- Bluetooth Monitoring: Track voltage, SOC, cycles, and temperature via smartphone.
- Long Life: ~6,000 cycles at 100% DOD; 10‑year design life.
- High Efficiency: >98% energy efficiency for faster charging and more usable power.
- Maintenance‑Free: No off‑gassing, no acid, no watering.
- Drop‑In Replacement: Group 27 size fits standard marine trays.
Applications
- Trolling motors (12V, 24V, 36V, 48V systems)
- Solar energy storage & off‑grid systems
- UPS backup power
- Medical carts & portable power
- Camping, RV, and trailer house batteries
- Marine deep cycle applications
Note: Not recommended for engine starting.
Charging Requirements
- Charging Voltage: 14.4V–14.6V (CC‑CV)
- Recommended Charging Current: 10A–50A (best at 15–20A)
- Max Charging Current: 100A
- Alternator Charging: Compatible with <15V alternators; DC‑DC charger recommended.
- Solar Charging: Use a Lithium‑compatible charge controller.
- Parallel: Up to 4 batteries
- Series: Up to 4 batteries
Technical Specifications
| Model | LFP12100MBH |
| Battery Type | LiFePO4 Deep Cycle |
| Nominal Voltage | 12.8V |
| Capacity | 100Ah |
| Energy | 1280Wh |
| Cycle Life | ~6,000 cycles @ 100% DOD |
| Charging Voltage | 14.6V |
| Cut‑Off Voltage | 10.0V |
| Max Charge Current | 100A |
| Max Discharge Current | 100A |
| Peak Discharge (3s) | 250A |
| Weight | 25 lbs |
| Dimensions | 12.08” x 6.6” x 8.35” (Group 27) |
| Terminals | M8 |
| Waterproof Rating | IP67 |
| Certifications | CE |
Temperature Ratings
- Charging: 32°F–113°F (heater activates below 32°F)
- Discharging: -4°F–150°F
- Storage: -4°F–113°F
Warranty & Shipping
- Warranty: 7‑Year Pro‑Rated
- Shipping: Free to the lower 48 U.S. states
For system design assistance or bulk pricing, contact Hurricane Wind Power.
